Used exclusively in 2003-2005 SunMaster tanning beds, and still used in many models. Super efficient, extremely cool running, state of the art. They are the most advanced ballasts available.
Designed to push 1, 2 or 3 lamps in the F71-F74 100W range. Can be used to power two 160W lamps, but is not within specification to do so, thus not warranted for such.
Please note: This is NOT a retrofit for other tanning beds, and it wires up VERY DIFFERENTLY. If you are looking for a replacement ballast for a NON-SunMaster bed, and you are not a technician, don't order this ballast. Like all electronics, it is non-returnable for other than defect.

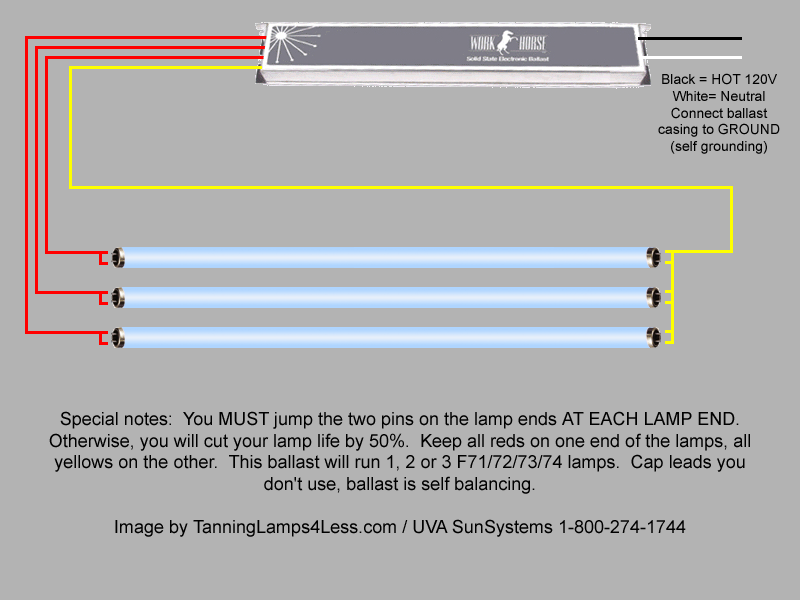

Need a diagram to convert an old bed to new technology? Click here.
Need the diagram for special 160W applications? (NOT FOR 100W TANNING BEDS!) Click here.
Specifications:
Maximum Power: 220W
Model Number: WH8-120-L
Maximum Current: 1.8 AMP
Operating Voltage: 120 VAC
Black/White Wires: 18"
Red/Yellow Wires: 36"
Ballast Case Size: H 1" x W 1.72" x L 18.25"
Ballast Weight: 34 oz.
Regulatory Approvals: UL & cUL Listed Type 1 Outdoors
High Power Factor: >.90
Open Circuit Voltage: 600 V RMS Max.
Min. Operating Temp.: -20* F (-30* C)
Max. Case Temp.: 158* F (70* C)
Lamp Starting Mode: Instant Start
Class P: Thermal
Sound Rating: A
Frequency: 50/60 Hz
ATHD: Meets ANSI C82.11-1993
Protection/Overcurrent: Fuse
Protection/Voltage Transients: MOV (PER ANSI C82.11 - 1993)
EMI/RFI: FCC PART 18-A
|
